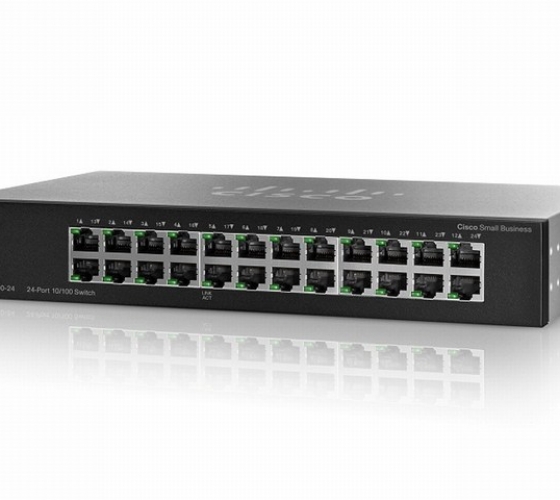

24-port 10/100Mbps Switch CISCO SF95-24

Ports

SF95-24: 24 RJ-45 connectors for 10BASE-T/100BASE-TX automatic medium dependent interface (MDI) and MDI crossover (MDI-X); auto-negotiated port for connecting 10-, 100-, 1000-Mbps devices

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet

Cabling type

Category 5e or better

LED indicators

System/PWR, link/activity, cable diagnostics, loop detection

Power supply

SF95-24: 110-240VAC, 50-60 Hz, internal, universal

Physical dimensions (W x D x H)

SF95-24: 279.4x44.45x170 mm

Weight

SF95-24: 2.91 lb. (1.32 kg)

Switching capacity

SF95-24: 4.8 Gbps

Forwarding capacity

Forwarding rate in million packets per second (mpps) (based on 64-byte packets): SF95-24: 3.6 mpps

Compliance/certifications

UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B*
